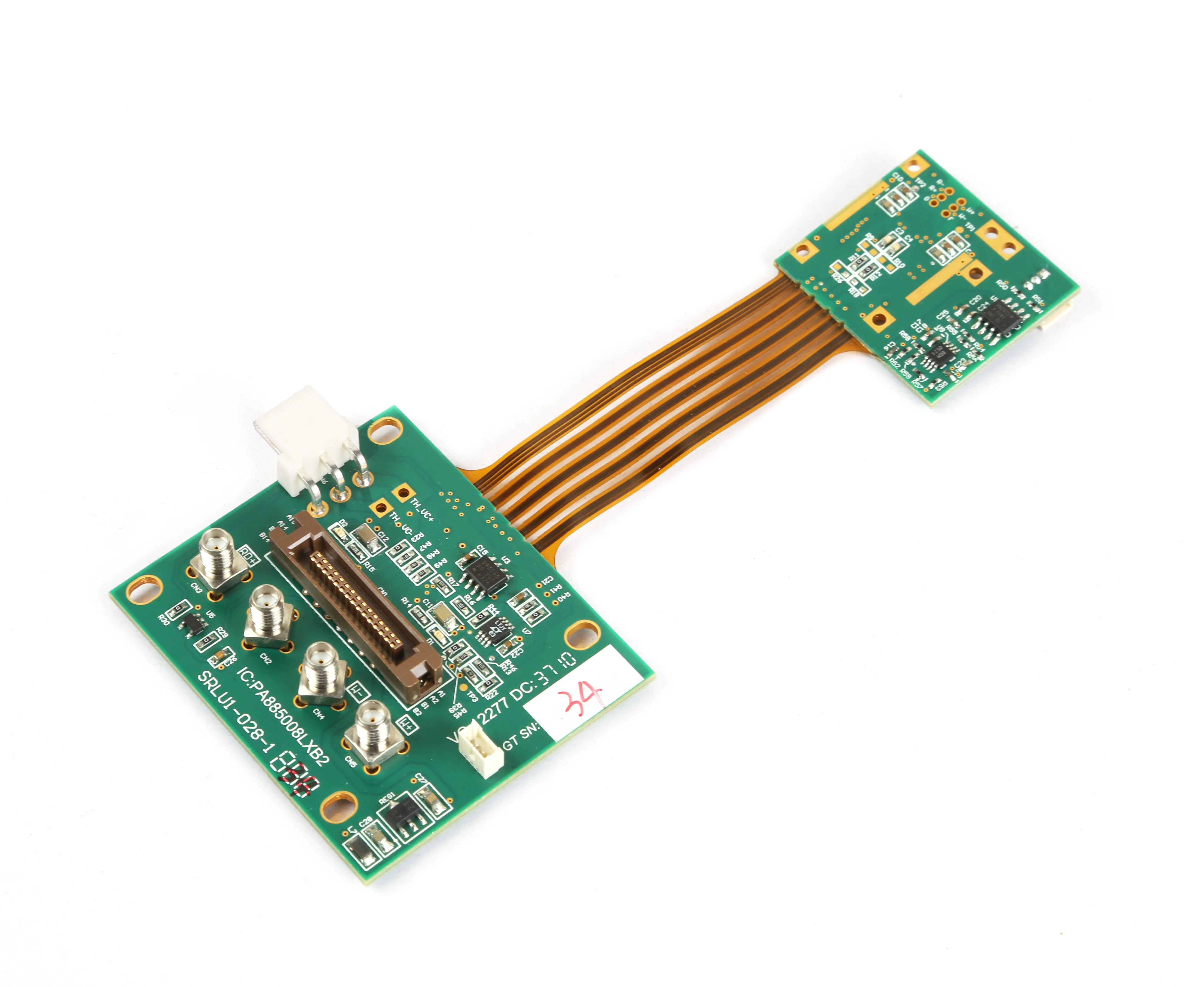

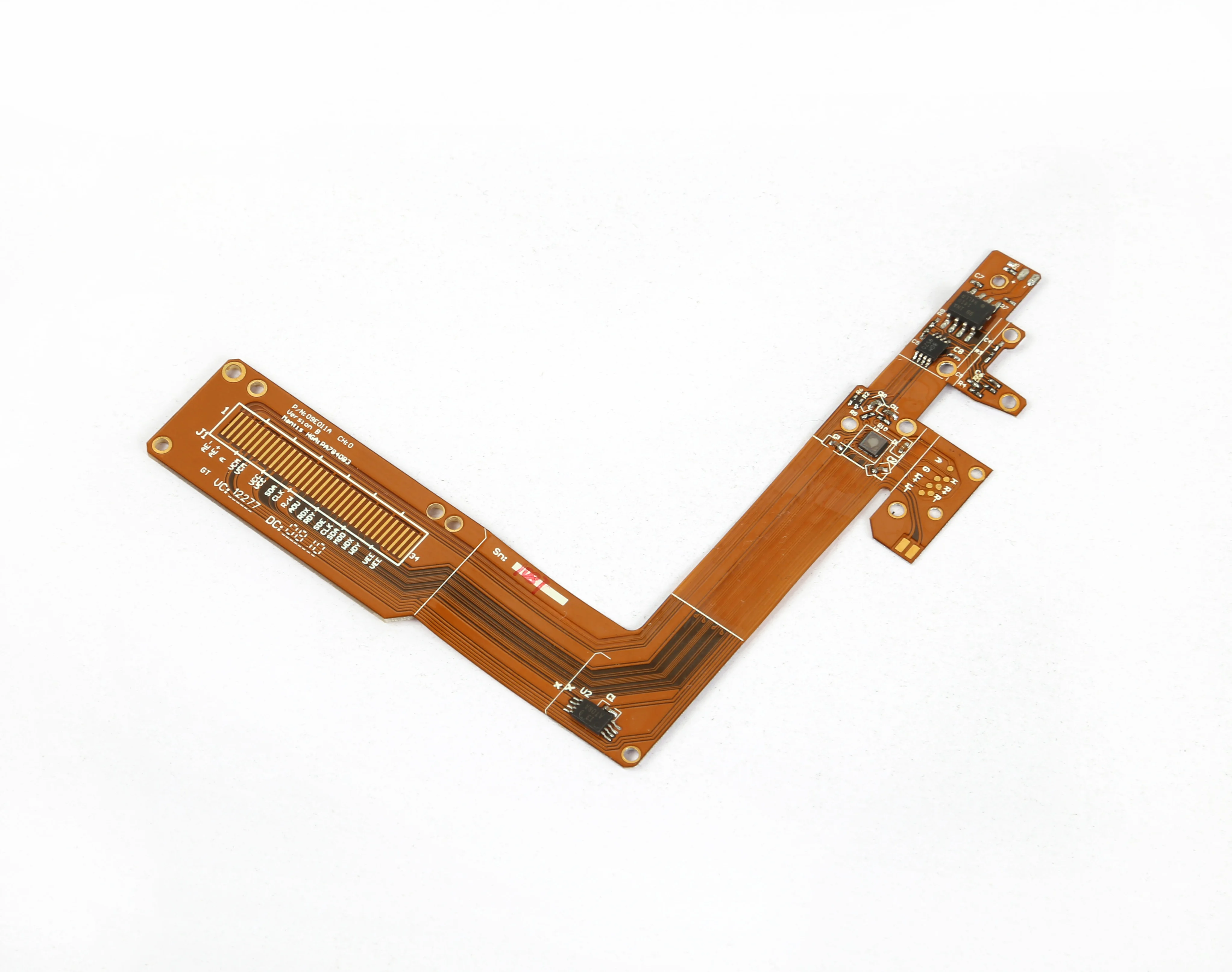

Flex PCB & Rigid Flex PCB Assembly

Galaxy offer One Stop-Shop Flex and Rigid-Flex PCB Assembly

Our Turnkey Flex PCB & Rigid Flex PCB Assembly Service Includes:

Flex PCB & Rigid Flex PCB Design: This stage entails the creation and planning of flexible printed circuit boards, tailored to bend and adapt to different configurations.
Flex PCB & Rigid-Flex PCB Cloning: This process involves replicating an existing flex PCB design, often used for reproducing or reverse-engineering existing circuit board designs.
Material Sourcing: This critical step involves acquiring the necessary materials for PCB production, such as substrates and conductive elements.
Surface Mount Assembly (SMT): A technique where electronic components are directly mounted onto the surface of the PCB.
Through-Hole Assembly (THT): In this traditional assembly method, components are inserted through holes drilled in the PCB and soldered on the other side.
Mixed Assembly (SMT+THT): This approach combines both surface mount and through-hole techniques on a single PCB.
Single/Double-Sided Assembly: This refers to attaching components on one side (single-sided) or both sides (double-sided) of the PCB.
Automated/Manual Soldering: The process of soldering, which can be performed either by sophisticated automated equipment or manually by skilled technicians.
Flip Chip Assembly: An advanced assembly process where the chip is placed upside down on the PCB, with conductive bumps making the necessary connections.
Final FPCA Calibration: The concluding phase in the assembly process, involves fine-tuning and calibration of the Flexible Printed Circuit Assembly (FPCA) to ensure optimal performance and adherence to specifications.
